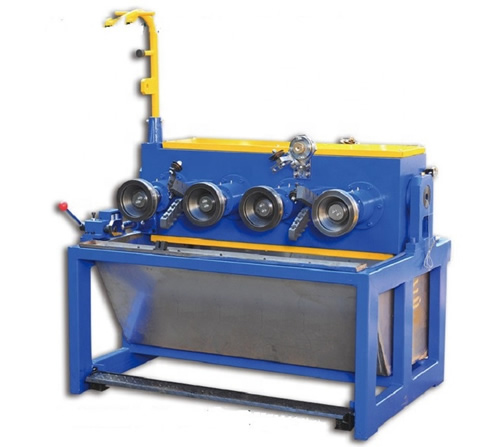

Wet Type Wire Drawing Machines

Wire drawing machine for fine wire in spools
Frequency conversion + PLC program controller

Wire / Rod Processing Scope: This CJ08 light type wire drawing machine is used to treat metal wires of the following sizes in mm: Diameter 0.8-1.5mm
Finished wire diameters outgoing: Diameter 0.10-0.25mm

Machine Size:
3200mm Length x 1200mm width x 1200mm height
Weight: 1600kg
Water tank thickness: 10mm/ 8mm

Features:
CJ08 Wet Drawing Machine is designed with European and American advanced technology, it offers the following benefits:
Simple and safe to operate and maintain;
High efficiency, energy-saving;
Advanced PLC control, saving labor work, one people can operate one production line;
Wire drawing machine consisting water seal cooling system, so the temperature of the machine remains comparatively low, safe to the production and workers;
Frequency adjustable motor adopted, hence the speed of the motor can be adjustable.

Application
Wet drawing machine is used for production of steel wire for conveyor belt, tire bead wire, high-pressure hose wire, gas shielded welding wire, staples, spring wire, wire ropes, etc.

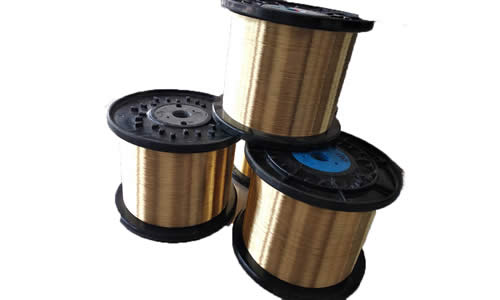

High carbon steel hose braided wire copper coated

Machinery Technical Parameters
Material: High Carbon Steel Wire C%: 0.70-0.96%
Wire Diameter: Inlet Diameter: 0.8-1.5mm, Outlet Diameter: 0.10-0.25mm
Drawing Speed: 16m/s
Drawing Pass: 23
Capstan Diameter: 242mm
Motor Power: Main motor: 22KW, Take up motor:1.5KW
Take Up: Individual Take up units control
