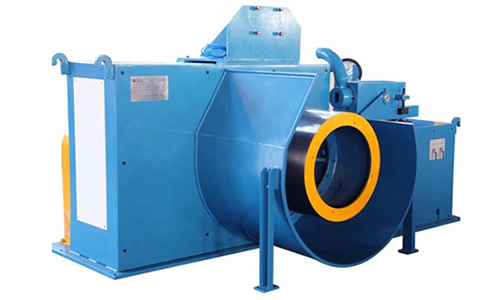

LD4000.1-1-750 Wire Drawing Machine

Vertical drawing wire
Horizontal Wire Drawing Machine Model LD750 for Low Carbon Feed Wire 12 mm Max.

Main Specifications

Max.drawing strength δb=110kgf/mm2
Max.feed wire diameter For low carbon steel wire: 12mm
For high carbon steel wire: 9mm
Block diameter 750mm
Max compresssion rate (approx) 26%
Max drawing force (approx) 2800kgf
Max velocity of block 82m/min
Motor for machine proper JZTr82-4,N=45KW,n=1300r/min
Motor for lubrication oil pump Y802-4,N=0.75KW
Total weight of equipment(approx) 6000kg

Typical Finished Products

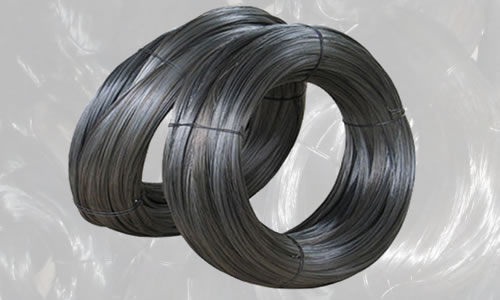

Low carbon steel wire annealed soft blackBlack annealed iron wire
Size: BWG12
Finish: Black annealed
Material: Mild steel wire with low carbon content
Application: Rebar tying in construction
