Straight Line Wire Drawing Machines

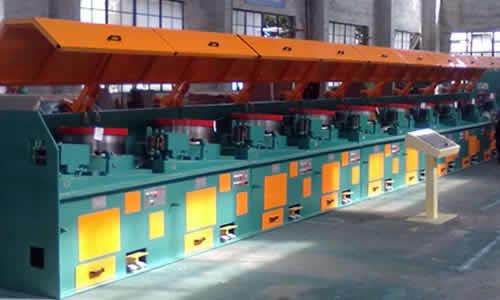

Automatic High Speed Carbon Steel Wire Drawing Machine Model LZ9/900

General Models

Models Unit LZ9/900 LZ9/800 LZ9/700 LZ10/560 LZ10/400
Reel diameter mm 900 800 700 560 400
NO. of drawing capstan time 9 9 9 10 10
Inlet dia mm Ø 14~8 Ø 10~8 Ø 8~6.5 Ø 6.5~5.5 Ø 14~8
Outlet dia mm Ø 5~3 Ø 4~3 Ø 3~2.5 Ø 2~1.8 Ø 1~0.8
Wire drawing speed m/min 300 360 480 720 840
Tensile strength Mpa >=1300 >= 1300 >= 1300 >= 1300 >= 1300
Total percent reduction % 87.24~85.94 84~85.94 85.94~85.21 90.53~89.29 87.24~84
Average percent reduction of area % 20.48~19.58 18.42~19.58 19.58~19.13 21.00~20.02 18.61~16.74
Motor power range KW 110~90 90~55 75~55 37~22 15~7.5

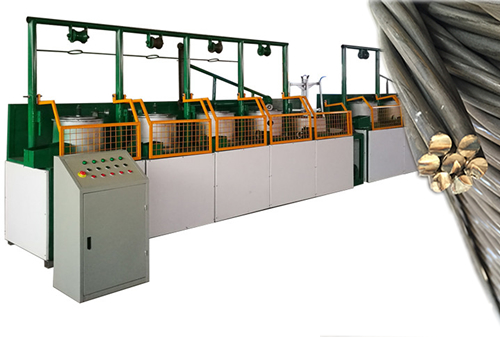

Straight line wire drawing machine for PC wire strand production

High carbon pc wire strand production line

Technical Details:

Drawing machine:
Technical specifications of the machinery:
Diameter 760 mm block
No. of block: 9
Wire inlet size: 8/7 mm
Finish size 4/3 mm indented and plane
Speed of the machine: 8-10 meter/second.
Material: High carbon pc wire
Application: HC PC bar production line

System with Single Wire LRPC line with Spiral/indenting.
High speed straightening machine
Wet drawing machine for 20G binding wire
For India.



Straight line steel wire drawing machine system for Saudi Arabia

Technical specification:
8 blocks 550mm
5.5mm inlet to 1.8 mm outlet
Low carbon steel material
Designed with Rotating die holder

The drawing machine including:
Wire scaling and brushing system
Dead block machine
Complete electrical control board
Power: 380 V 60 Hz
Supply market: Saudi Arab



Straight Line Wire Drawing Machine for Brazil Market

Specifications required:

Description:
Straight Line Wire Drawing Machine
- Low / Medium Carbon Steel - 10 Drawing Pass
- Wire Drawing Speed 720 mt/min
- Tensile Strenght < 1300 Mpa
- Motor Power Range 37 - 22 KW

Measurement
Max Inlet Ø5.5 - 6.5 mm
Min Outlet Ø1.8 - 2.0 mm
Reel Ø560 mm



Wire Drawing Machine for India Market:

Specification Drawing Path Max. Incoming
Wire
mm
Min. Finished
Product
mm
Motor Power
kw
Max. Speed
m/s
Rotation Pattern
650 1-4 8.00 4.00 22-15 2 Gear Rotation
560 1-7 6.50 2.00 22-11 6 Gear Rotation
450 1-7 3.50 1.20 18.5-15 7 Gear Rotation
400 6-8 2.50 0.80 11-15 18 V-belt Transmission
360 1-7 2.50 0.60 11-7.5 8 Gear Rotation

We also supply straight line wire drawing machine to Colombia - South America.
