We supply wire drawing machine for drawing of high tensile spring wire to India and Pakistan users.
Drawing Machine for processing of high carbon wire
| Wire Rod Inlet (mm) | 7.00 | 8.00 | 9.00 |
| Inlet Tensile (kg/mm2) | 125.00 | 125.00 | 125.00 |
| Wire Outlet (mm) | 5.60 | 6.30 | 7.60 |
| Outler Tensile (kg/mm2) | 150.00 | 150.00 | 150.00 |
| Finishing Speed (m/s) | 3.00 | 2.50 | 2.50 |
| Material: High Carbon wire rod 82B. | |||
Above machinery is designed in straight-line configuration with a stripper block in the last block.
Also supplied with an option with descaling, boraxing and drying unit.
1) SLM configuration with 3 blocks of 760
2) SLM configuration with 2 blocks of 900
3) SLM configuration with 3 blocks of 900
4) SLM configuration with 2 blocks of 760

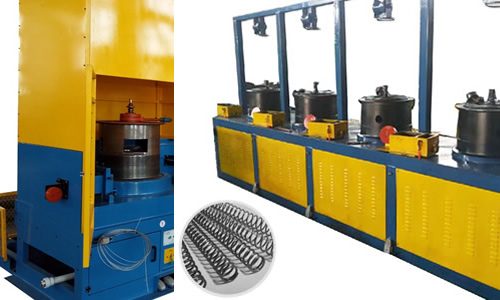

Straight line wire drawing machine for processing of mattress spring wire
Material to be drawn : High Carbon wires (grade 72B and 82B)
Diameter of capstan : 600mm
Number of capstan : 8
Inlet diameter : 5.5mm to 8mm
Outlet diameter: 1.8mm to 3.25mm
Tensile strength of inlet wire : < 135kg
The machine is suitable for processing of:
Mattress spring wire (5.5mm >> 2.4mm) 72B
Spoke wire (5.5mm>>3.2mm) 47B
Baling wire (5.5mm>>1.8mm) 72B
High carbon wires (8mm >> 3.25mm) 82B

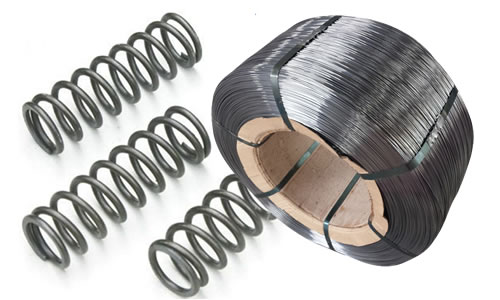

Typical Finished Products:
Wire diameter: 0.40 mm
Form: Round wire
Surface: bright galvanised
Tensile: hard spring temper
Packing: in 10kg coils net weight
