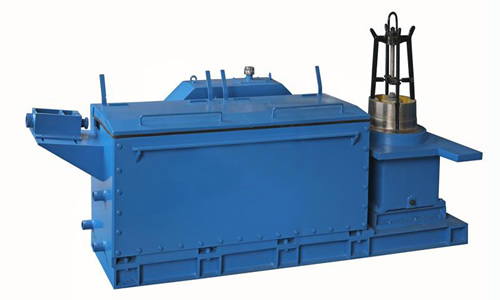

LT400.2-13-450 Water Type Wire Drawing Machine

wet type wire drawing machine to process wire 5.6mm
Wet type, Used for drawing low,medium and high carbon steel wire

Main Specifications

Diamer of Roller cylinder 550mm
Wire drawing channels 9time
Maximum feed wire diameter 5.6mm
Maximum discharge diameter 1.4mm
Total compression rate 80%
Average partial compression rate 18.25%
Drawing line speed of end product 4.17m/s
Power of motor 132KW
Dimension of contour 5300×3500×1800
Weight
13500kg
